CalOffroad Platinum Series Lift Kit — Hilux N80 (2015 on)

CalOffroad Platinum Series Lift Kit — Hilux N80 (2015 on)

$2,543.05 AUD
$2,726.46 AUD $2,543.05 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Lift Height
Duty Combo

CalOffroad Platinum Series 4x4 lift kit tour pack for the Toyota Hilux N80 (2015 on). The Platinum tier runs Bilstein-built struts and shocks, a step above the Nitro Pro range. Use the calculator below to tell us what your ute actually carries — we pick the front and rear duty tier that gives you the best ride quality for your real setup, not an overbuilt one-size-fits-all spec.

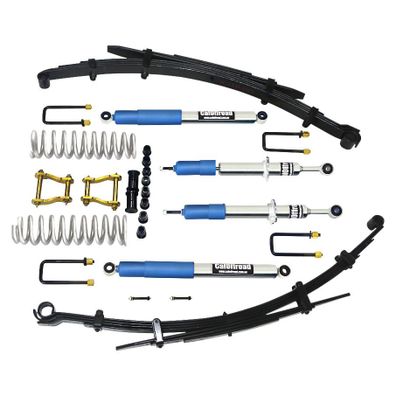

What's in the kit

  • 2 x assembled CalOffroad Platinum Bilstein front coilovers (new strut tops included)
  • 2 x CalOffroad Platinum Bilstein rear shocks
  • 2 x rear leaf springs
  • 4 x U-bolts
  • 2 x greasable shackles
  • 2 x greasable pins
  • 1 x leaf spring bush kit

Fronts come fully assembled — spring already fitted to the strut with new tops, ready to bolt straight in. No spring compressor needed.

CalOffroad Platinum Lift Kit Calculator — Cubby House Fabworks
Front & Rear Duty Tier Calculator

Dial in front and rear.

Toyota Hilux N80 carries a stock front axle around 1180kg and a stock rear axle around 1000kg on an LD tier. Tell us what's fitted and the price updates automatically to match your exact front and rear duty tier.

!

Please fill in your setup below before ordering — it helps us make sure we build the right spec for your vehicle. Skipping it is fine, but the details help us get it right the first time.

80/20

Build this for how you actually drive — the daily commute, the school run, the odd weekend track — not the one loaded trip you do three times a year. Nobody enjoys a daily-driven brick just so it's ready for a trip it takes twice a summer. If your heavy trips are rare, tell us straight and we'll spec for the other 80%.

✓

Lift Height

We've set the Lift Height option above to match — change it any time.

Selected lift height: 2in

Rear Shock Length

Standard fits the factory bump stop. Long travel has a shorter closed length and needs a bump stop extension.

Long-travel shock: shorter closed length — we recommend running a bump stop extension so the shock isn't the first thing to bottom out.

Front-Mounted Accessories

Bull bar and winch hang off the front overhang, so essentially all of that weight loads the front axle.

Bull bar
Winch
Spot lights
LED bar or driving light pair mounted on the bar — about 100% loads the front axle.

Underbody & Chassis

Mounted between the axles, so only part of the weight transfers forward.

Rock sliders
~20kg/side along the chassis rail — about 35% of that reaches the front axle.
Bash / skid plates
Engine & transfer case plates sit forward of centre — about 75% transfers to the front.
Dual / extra battery
Engine bay, ahead of the firewall — about 90% loads the front axle.
An extra/dual battery sits off to one side of the engine bay, so that side needs a touch of preload dialled in to correct the one-sided weight. We'll set this for you.

Rear-Mounted Gear

Tray, canopy, boxes — mounted behind the cab, so this loads mostly onto the rear axle.

Tray
Tool Box
Canopy
~233kg average, fitted over the tub.
Dog box
~90kg average.
Rear bar
~57kg average.
Long range fuel tank
~200kg loaded.
Drawers
~81kg unloaded.
Fridge + drop slide
~44kg average.

Towing

Tow ball weight loads almost straight onto the rear axle.

kg
Front Result

Recommended Front Tier

Suggested tier
LD
Light Duty
Est. front axle load
1180 kg
stock
LD MD HD XHD
Rear Result

Recommended Leaf Pack

Price adjusts automatically to match your calculated front and rear tier.

Suggested duty tier
LD
Light Duty
Est. rear axle load
1000 kg
stock
LD MD HD XHD
This load is over the Toyota Hilux N80's rated rear axle capacity (1700kg). Talk to us before we spec a pack — a GVM upgrade might be the better fix.
This exact front/rear combination isn't priced online yet — we've kept the price at your last valid tier. Contact us to confirm pricing for this setup before ordering.

Your setup has been calculated and attached to this order — we'll confirm the exact spec before we build.

Guide only. Your answers attach to your order automatically so we see them at checkout, and we'll sanity-check the spec before we build. We're chasing ride comfort and capability together — not stance for its own sake.

Lead time: these kits are made to order and lead times vary. Please email us before ordering and we'll confirm current availability and an ETA for your build.
