GQ/GU Patrol Rear Diff Weld-On Leaf Perch Kit – N70 Hilux Conversion

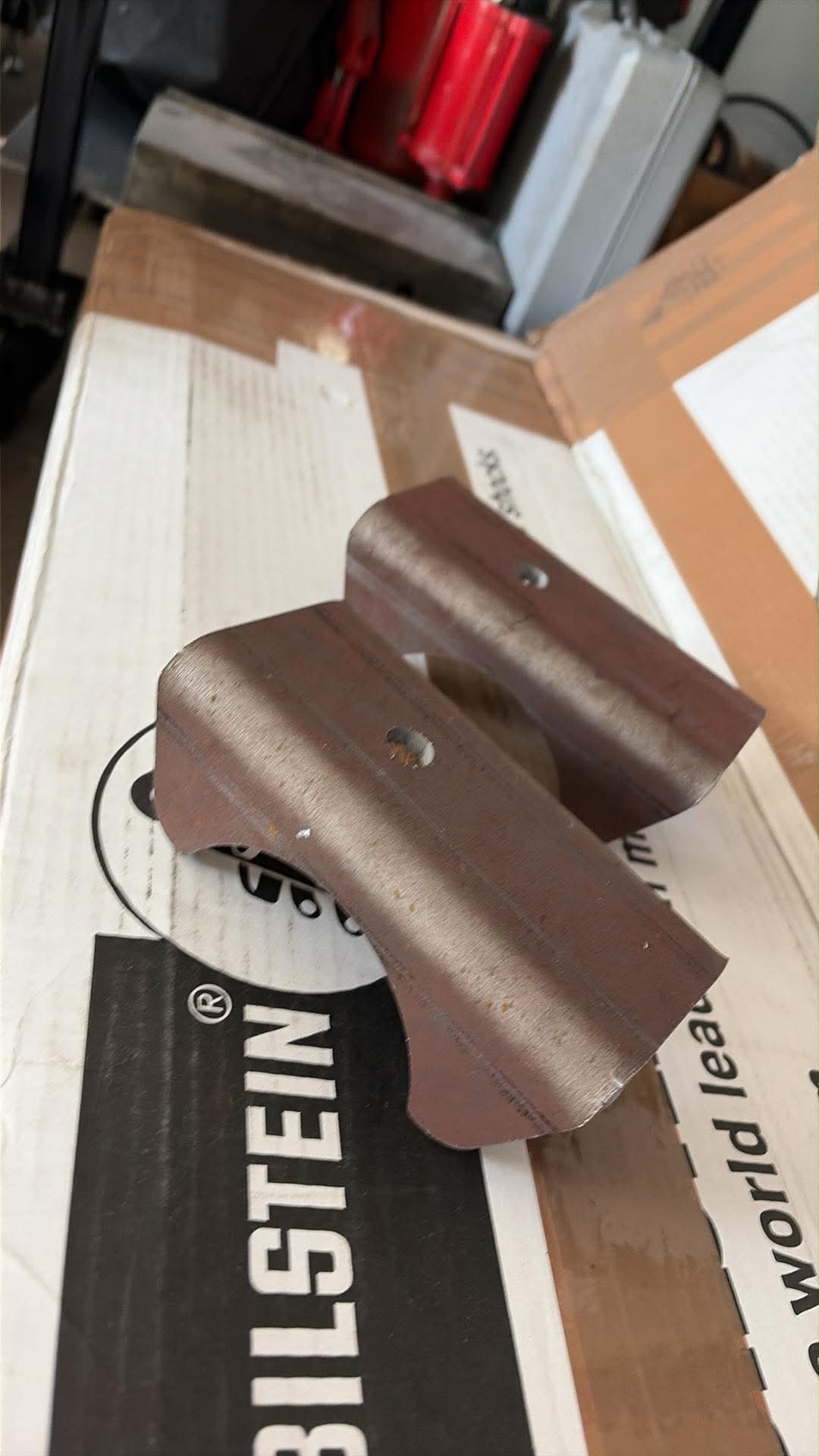

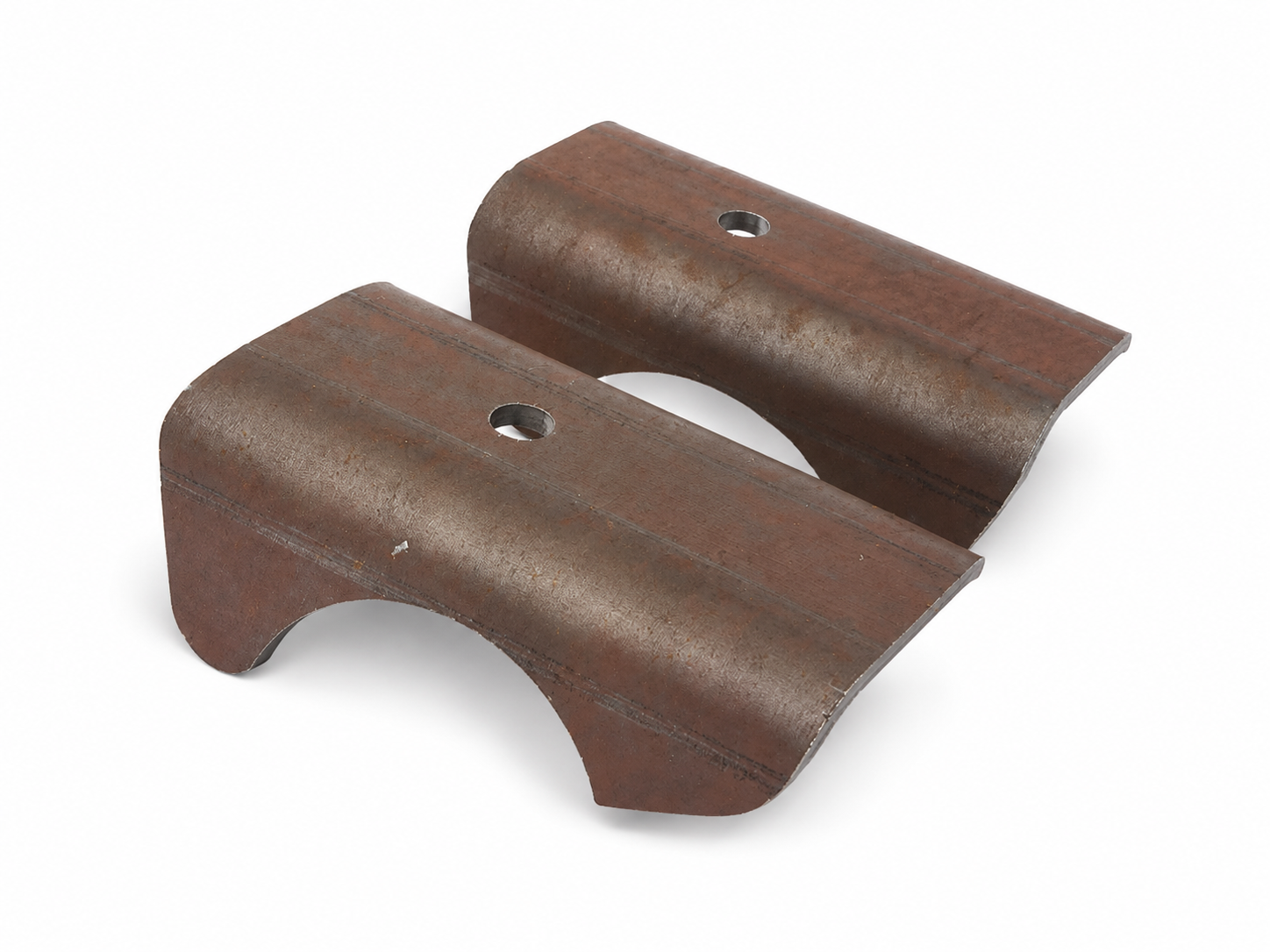

Weld-on leaf spring perch kit for running a Nissan Patrol GQ (H233B) or GU rear diff conversion in an N70 Hilux.

Sold as a pair. These perches are offset 20mm forward of stock position to correctly locate the Patrol diff housing on your Hilux leaf springs, accounting for the extra axle-to-pinion-flange length of the H233B centre compared to the factory Hilux diff.

This is a weld-on kit — welding required for fitment. Not a bolt-on product.

• Suits GQ (Y60) and GU (Y61) Patrol H233B rear diff housings
• Compatible with RB30S / RD28T rear diff centres
• 20mm forward offset to correct axle-to-pinion-flange length
• Sold as a pair, weld-on installation
• Factory Hilux U-bolts and shock mounts can be reused

See our full GQ diff conversion how-to guide on the blog for flange, brake line, and handbrake info.
