N70 RG Leaf Conversion Pack

$1,995.00 AUD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Leaf Duty Tier Light Duty Medium Duty Extra Heavy Duty

Brake Line Single Pair

Quantity

N70 RG Leaf Conversion Pack — everything needed to convert a Hilux N70 rear end onto Isuzu/Holden RG-sourced leaf springs, matched with a 660mm open Bilstein Platinum rear shock and the correct extended shackle and brake line for the extra travel.

What's in the kit

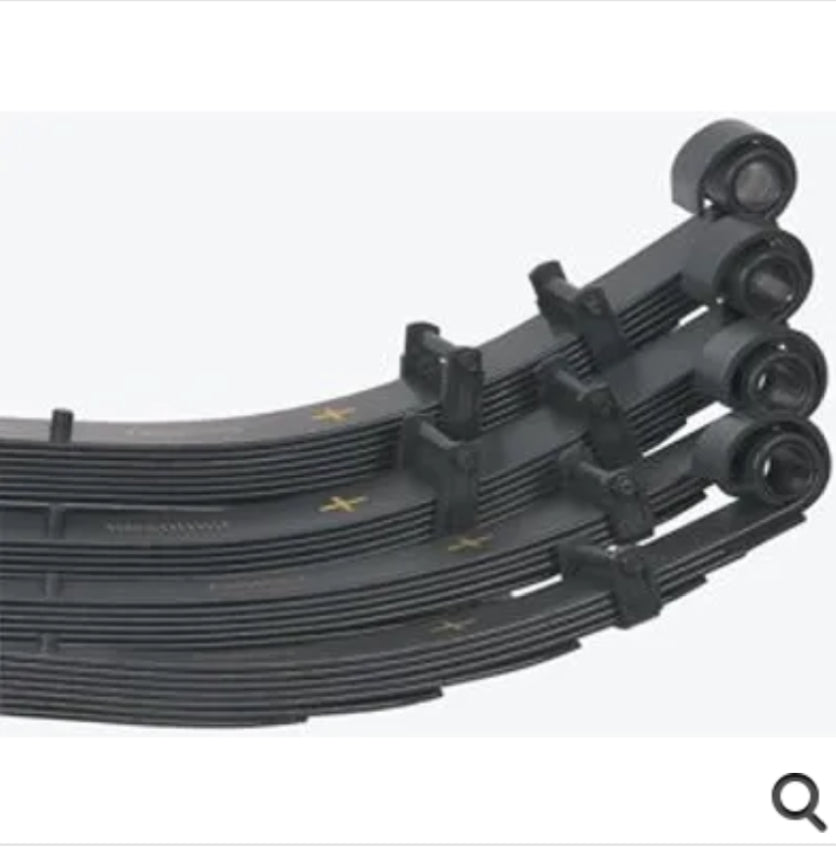

1 x CalOffroad Rear Leaf Pack — pick your duty tier above (Light / Medium / Extra Heavy Duty), sourced from Isuzu D-Max / Holden Colorado RG stock
2 x Bilstein Platinum Rear Shock, 660mm open (400mm closed)
1 x Extended Greasable Shackle Pair — 190mm bolt-centre-to-bolt-centre (Hilux N70 pattern)
Extended brake line — pick single or pair above

Optional add-on: tick the box in the calculator below to add a N70 Hilux Leaf Spring Bush Kit (fresh polyurethane bushes, +$111.93) to your order as a separate line item.

Important — 3° caster wedges are not included. This conversion needs a 3-degree caster correction wedge fitted between the axle pad and the leaf pack. We don't stock these — please source your own before booking a fit, or contact us and we'll point you in the right direction.

Rear Weight Guide — RG Leaf Conversion

Tick everything that's fitted (or planned) on the back of your ute. Note: because the RG-sourced leaf pack in this kit rates a notch lighter in real-world use than a standard N70 pack of the same nominal rating, the suggested rating below is shown one tier lighter than the raw calculation — e.g. a load that would normally read Medium Duty is shown here as Light Duty. Use this to help pick the Leaf Duty Tier option above. This is guidance only.

	Rear accessory	Avg weight
	Aluminium tray	90kg
	Steel tray	150kg
	Aluminium canopy	70kg
	Steel canopy	120kg
	Drawer system	40kg
	Dual battery setup	25kg
	Water tank (full, ~80L)	80kg
	Aux fuel tank (full, ~60L)	55kg
	Spare tyre (extra/mounted)	25kg
	Tool boxes	20kg
	General camping/touring gear	100kg

Total added rear weight: 0kg

Suggested rating (RG-adjusted): LD (Light Duty)

This load calculates heavier than the Extra Heavy Duty pack option on this kit. Please contact us before ordering.

+ Add N70 Hilux Leaf Spring Bush Kit — +$111.93 Fresh polyurethane bushes for the new leaf pack, added to your cart as a separate item alongside this kit.

✓ I confirm the information above is true and accurate. Your suspension is built to this spec — the more accurate it is, the better the result you'll get.

* Weights are rough averages for guidance only. This gets attached to your order automatically so we see it at checkout — we'll still confirm before dispatch.

Please note: this kit is assembled to order and isn't held in stock — please allow standard lead time.
